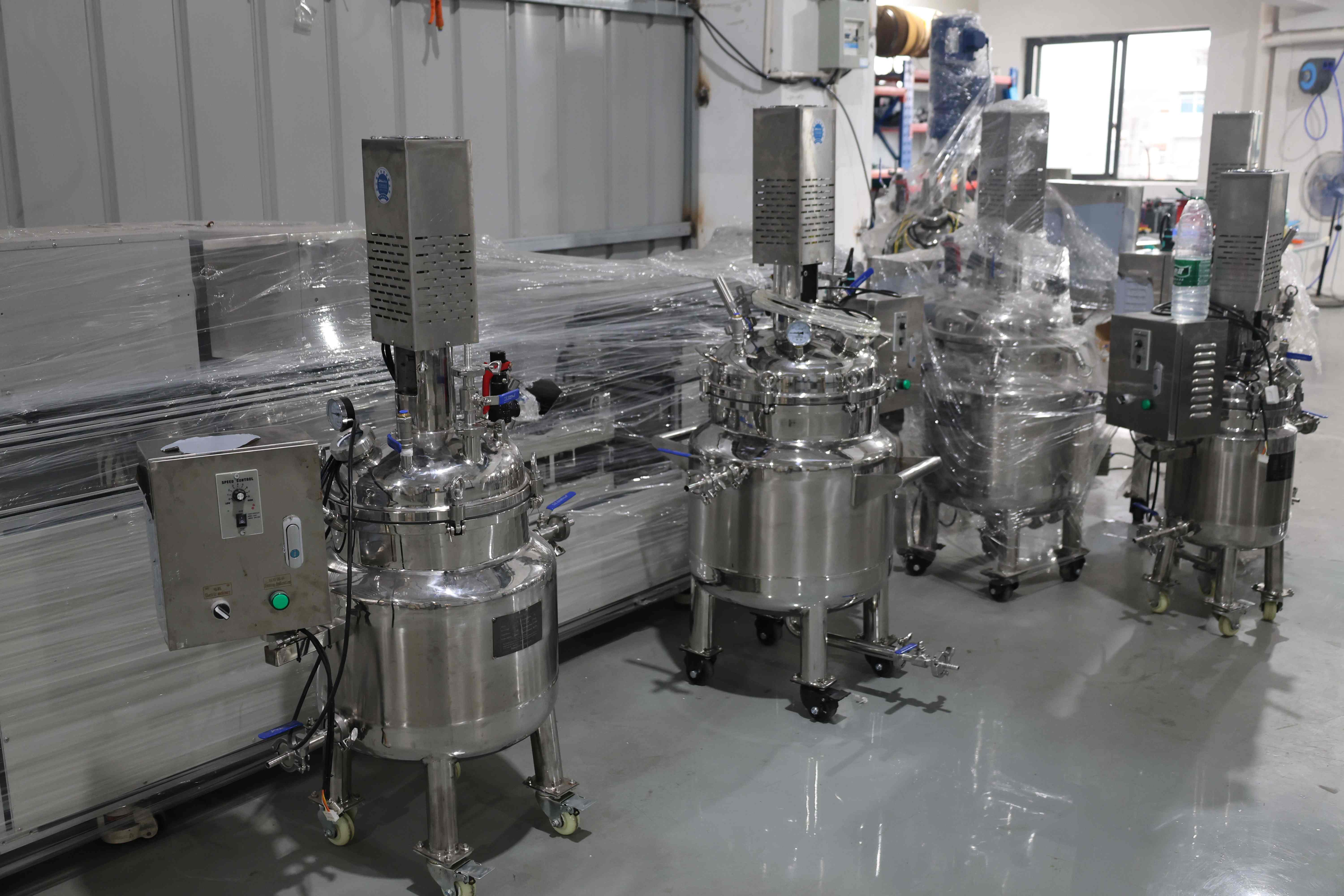

Production Vaccum Defoaming Tank

1.The defoaming tank is suitable for defoaming large volumes of slurry and is designed to be used with a production-scale tape casting machine.

2.All components are constructed from 304 stainless steel for enhanced durability and corrosion resistance.

3.Tank capacity ranges from 15L to 500L, accommodating various processing needs.

4.Equipped with a Y-series three-phase asynchronous motor, operating at 220V with a power output of 0.24 kW.

5.The tank lid features a curved head design and is equipped with a feed inlet, exhaust port, sight glass hole, integrated spotlight, safety valve, and positive/negative pressure gauge.

6.The tank's conical bottom forms a 105° angle with the body, ensuring complete discharge without dead corners.

7.Agitator speed is variable, ranging from 0 to 60 rpm, with frequency control for precise operation.

8.All supply tank connections are standardized with 1" quick-release clamps, allowing for easy disassembly and replacement.

1.Forward and reverse rotation function for enhanced mixing versatility.

2.Emergency stop function for safe and immediate interruption of stirring.

3.Transparent viewing capability for real-time monitoring.

4.Fully automatic program control function for streamlined operation.
