Warm Isostatic Pressing (WIP) Applications in Ceramic and Energy Storage Green Body Forming
2026-01-12
Warm Isostatic Pressing (WIP) is a critical advanced forming technology that uses deionized water as the pressure medium to achieve uniform densification of green bodies under moderate temperature (50-200℃) and high pressure (100-600MPa) conditions. Its core advantages of uniform pressure distribution, precise temperature control, and clean processing make it indispensable in high-performance manufacturing sectors globally. This report focuses on WIP's applications in two key industries: ceramics and energy storage, highlighting its value in green body forming for international markets.
1. WIP Application in Ceramic Green Body Forming
The ceramic industry is a traditional and major application field for WIP technology. For ceramic green bodies, WIP effectively eliminates internal defects such as pores and uneven density, significantly improving the mechanical properties and sintering stability of finished products. This technology has been widely adopted in the global ceramic manufacturing sector, driving the transformation towards intelligence and high precision.
1.1 Core Application Scenarios
Structural Ceramics: WIP is used for forming green bodies of complex precision components such as ceramic turbine discs and pressure plates. It enables near-net shaping with dimensional accuracy up to ≤0.02mm, and mechanical strength is enhanced by 15-20% after sintering. This meets the strict requirements of industries such as aerospace and automotive for high-performance structural ceramics.

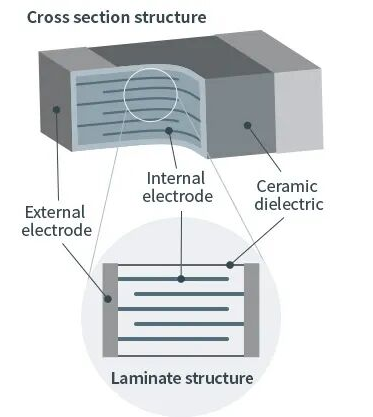

Functional Ceramics: In the production of electronic ceramic green bodies (e.g., alumina, zirconia substrates) and bio-ceramic green bodies (e.g., hydroxyapatite dental implants), WIP ensures uniform densification. For bio-ceramic green bodies, the moderate temperature processing maintains excellent biocompatibility, with cell adhesion rate reaching over 90% after subsequent processing.
1.2 Technical Advantages for Global Ceramic Manufacturers
Compared with traditional forming methods, WIP reduces the number of processing steps by more than 60% in ceramic green body production, lowering labor intensity by nearly 50% and increasing product qualification rate by over 15% . For international ceramic enterprises focusing on high-end markets (such as European and American precision ceramic components manufacturers), WIP's ability to ensure consistent quality of large-batch green bodies is a key factor in improving market competitiveness.
2. WIP Application in Energy Storage Green Body Forming
With the global surge in energy storage demand and the accelerated industrialization of solid-state batteries, WIP has emerged as a core enabling technology in energy storage green body forming. It effectively solves the key problem of poor solid-solid interface contact in energy storage materials, greatly promoting the performance improvement and commercialization process of energy storage devices.
2.1 Core Application Scenarios

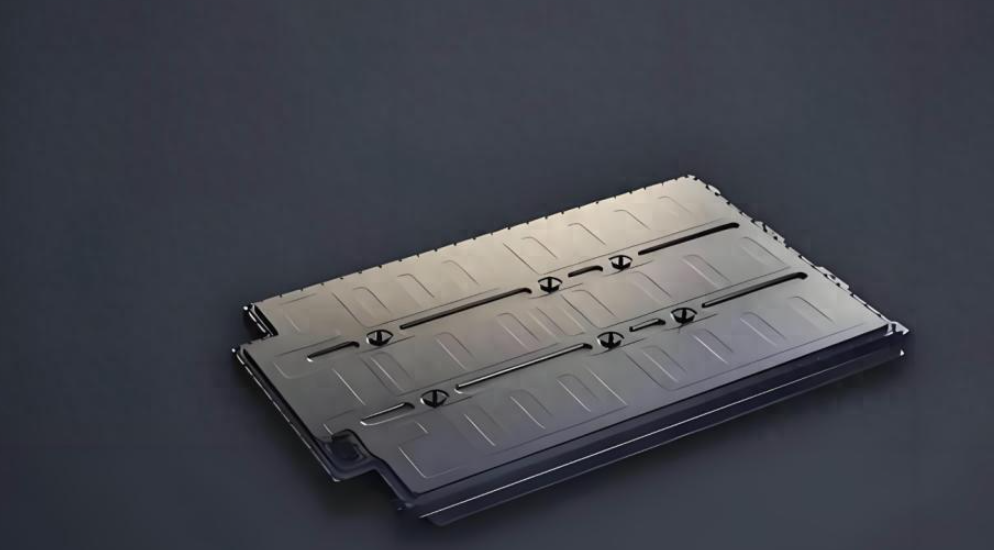

Solid-State Battery Green Bodies: WIP is widely used in the integrated densification of solid-state battery electrode-electrolyte green bodies. It can reduce the porosity of electrolyte green bodies to below 0.15%, increase ionic conductivity by more than 30%, and double the cycle life of batteries . Typical process parameters are 450-600MPa pressure and 85℃ temperature, which are compatible with mainstream electrolyte materials such as sulfides and oxides. Currently, leading lithium battery manufacturers worldwide have adopted WIP equipment in their solid-state battery pilot lines.

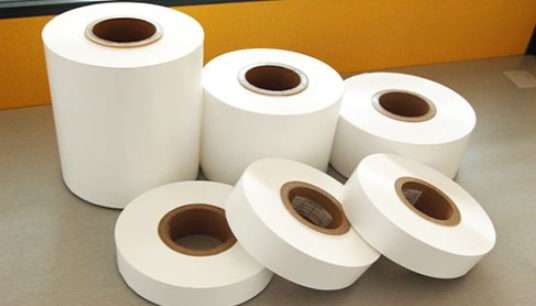

Energy Storage Ceramic Components: For green bodies of ceramic separators and structural components in energy storage systems, WIP improves structural density and mechanical strength, enhancing the safety and service life of energy storage devices. With the rapid growth of global new energy storage installed capacity (targeting 180GW by 2027 in China alone, with strong demand growth in North America, Europe, and Southeast Asia ), the demand for WIP equipment in this field is expected to grow explosively.
2.2 Technical Advantages for Global Energy Storage Industry
The global energy storage industry is focusing on improving energy density and safety. WIP technology, with its precise control of green body densification, provides a reliable solution for the mass production of high-performance energy storage materials. Compared with other densification technologies, WIP balances efficiency and cost, reducing equipment investment by 40-60% compared to Hot Isostatic Pressing (HIP) while achieving better densification effects than Cold Isostatic Pressing (CIP).
3. Key Technical Parameters for Ceramic and Energy Storage Applications
| Application Field | Working Pressure | Working Temperature | Dwell Time | Applicable Green Body Materials |
| Ceramic (Structural/Functional) | 200-350MPa | 100-150℃ | 8-15min | Alumina, Zirconia, Hydroxyapatite |
| Solid-State Battery | 450-600MPa | 85℃ | 10-20min | Sulfide/Oxide Electrolyte, Electrode-Electrolyte Laminates |

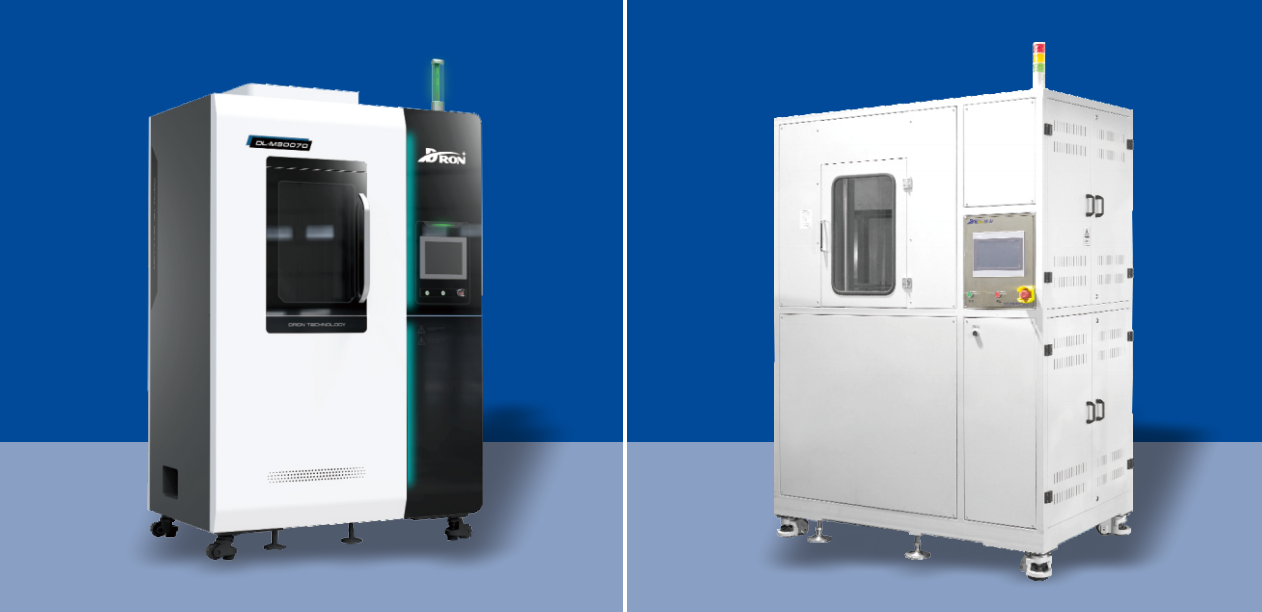

4. Dron Technology's WIP Equipment Advantages
As a professional supplier of WIP equipment, Delong Technology provides customized solutions tailored to the characteristics of ceramic and energy storage green body forming, with core advantages suitable for global market demand:
High Precision Control: Pressure fluctuation range ≤±0.2MPa, temperature control accuracy ±1℃, ensuring uniform densification of green bodies in large-batch production.
Efficient and Energy-Saving: Equipped with a waste heat recovery system, energy consumption is 15% lower than the industry average, in line with global energy conservation and emission reduction trends.
Customization Capability: Supports personalized customization of cavity size (φ100-500mm) and process parameters, adapting to different green body forming needs in ceramic and energy storage industries.
Reliable Safety Performance: Equipped with multiple safety protection devices such as overpressure alarm and automatic pressure relief, complying with international safety standards (CE certification).
In the ceramic and energy storage industries, WIP technology plays an irreplaceable role in improving green body quality and promoting industrial upgrading. With the global emphasis on advanced manufacturing and new energy development, the demand for WIP equipment in these two fields will continue to grow. Delong Technology's high-performance, customized WIP solutions are well-positioned to meet the needs of international customers, providing strong support for the high-quality development of global ceramic and energy storage industries.
