Tape Casting Machine: Powering EV & Hydrogen Energy, Core Equipment for Solid-State/Fuel Cells.
Against the booming EV and hydrogen energy industries, the Tape Casting machines from Zhejiang DRON Technology Co., Ltd. stand out with superior high-precision film forming capability. They serve as key equipment for manufacturing core components of solid-state batteries and fuel cells, strongly supporting technological breakthroughs and large-scale applications in the new energy sector.
Many domestic new energy enterprises have adopted our customized tape casting machines, built solid-state battery pilot lines, and accelerated product commercialization.
In EV and hydrogen energy fields, fuel cell core components (proton exchange membranes and gas diffusion layers) also rely on tape casting machines for precision forming. Our equipment enables stable mass production of ultra-thin, high-strength functional films, helping reduce fuel cell costs and improve power density.
Beyond that, tape casting machine applications are expanding into non-oxide ceramic membranes and precision medical device components.

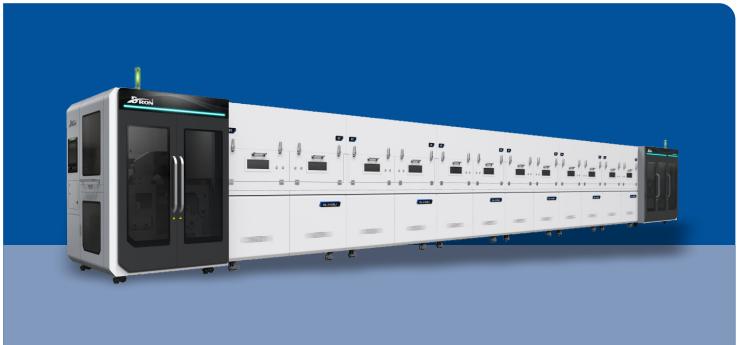

（Tape Casting Machine）
- Product Type: Ceramic Slurry Tape Casting Equipment
- The products manufactured by the equipment cover applications in the following fields: SOFC, SOEC, PEM, AEM，PBI, HTCC, LTCC, MLCC, MLCI and SMD.
| Parameter | Specification |
| Carrier material | PET film (50–188μm) |
| Casting width | 550mm (customizable per customer requirements) |
| Doctor blade speed | 0.02–20 (M/min) |
| Film thickness | 5–1500μm |
| Thickness accuracy | ± (1% + 1μm) |
| Solid content | 10%–60% |
| Viscosity | 300–50000mPa·s |
| Feeding method | Nitrogen pressurization; laser liquid level measurement; card control flow |
| Liquid level accuracy | 9 ± 0.1mm |
| Oven length | 4 meters (3 sections, 1 meter each) |
| Oven heating | Independent heating for 120℃ (1 section); top hot air circulation adjustment |
| Drying zone temperature | Max. 120℃ |
| Hot air temperature accuracy | ±2℃ |
| Online thickness measurement accuracy | ±0.45μm |
| Roll change diameter | Max. 400mm |
| Maximum power | 60KW |
| Appearance design | Patent appearance |
| Equipment Manufacturer | Zhejiang Dron Technology Co., Ltd. |
| The equipment consists of the following systems: | |
| 1 | 1. Automatic feeding |
| 2 | 2. PET Unwinding Mechanism |
| 3 | 3. Doctor blade Mechanism |
| 4 | 4. Drying Oven system |
| 5 | 5. Deviation correction system |
| 6 | 6. Longitudinal Slitting Device |
| 7 | 7. PET Film Winding System |
