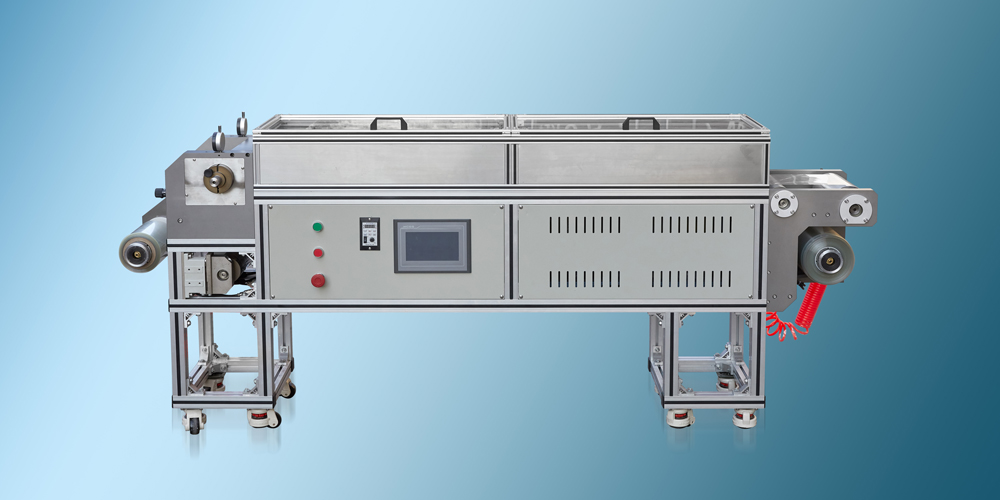

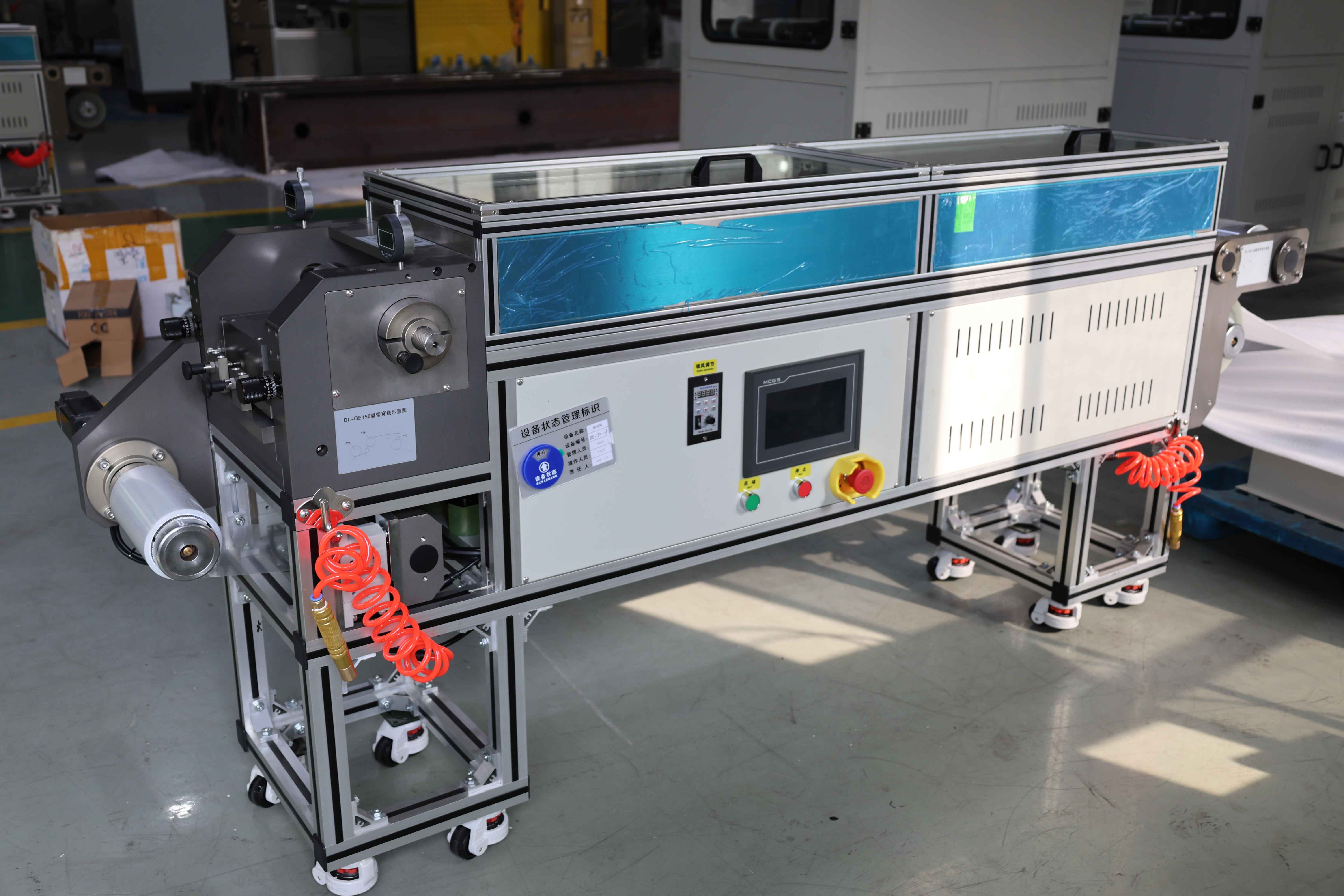

Laboratory Tape Casting Machine Small-Batch

1.Ideal for laboratories, universities, and small to medium-sized enterprises for trial tape casting

2.Features a compact design with a minimal footprint

3.Provides precise film calibration with a casting thickness range from 10 to 400 microns and supports static thickness capabilities over 1200 microns

4.The base plate heating in sections with a unit length of one meter and the hot air circulation ensure the uniform drying of films throughout the production process.

5.The equipment is suitable for coating trials using water-based and organic solvent-based materials.

6.Includes a doctor blade height range from 0 to 3500 microns with an accuracy of ±(1 micron + 2% PET of the thickness). Tool adjustment precision reaches 0.1 microns, ensuring high consistency in the production process and excellent surface quality

7.Designed with an intuitive and user-friendly interface that supports multilingual switching and customizable display options, making it easy for global users to operate and maintain

8.Doctor blade can be cleaned without the need for disassembly.

Experimental casting machine is through the relative movement between the baseband and the scraper, the mixed slurry to form a billet film, billet film together with the baseband into the drying chamber, solvent evaporation, the formation of billet after stripping, in addition to static electricity, wind up the material belt.

1.DronTech designed Dual-Doctor Blade

2.Utilizes two sets of electrostatic dust removal systems to enhance electrostatic discharge, improving production stability and safety.

3.Features dual servo motor control with adjustable tension

4.Offers programmable control for self-programming and autonomous operation

1.AEffective casting width：150-350mm

2.Drying chamber length ：2-6m

3.Optional automatic slurry feeding system.

4.Optional automatic edge alignment system.
