Fully Automatic Stacker for Multi-layer

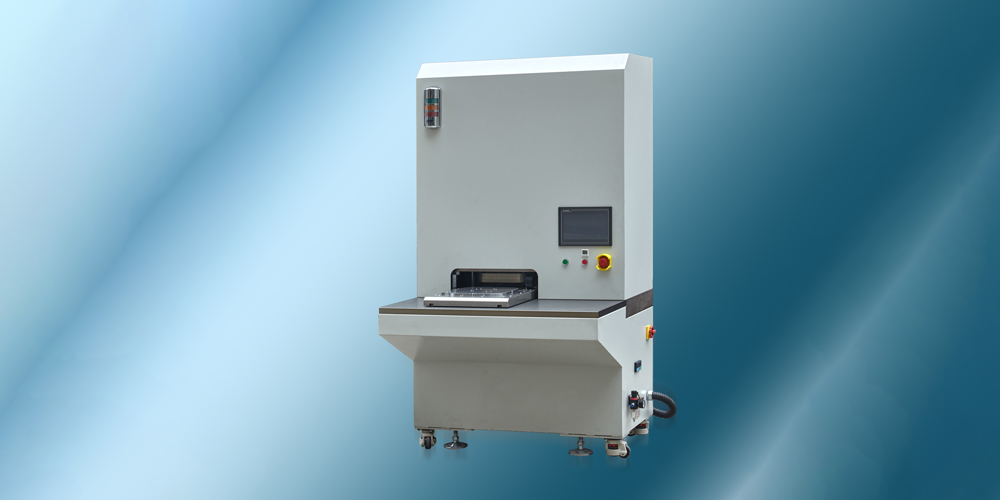

The Stacker DL-DC-42T is designed for stacking multiple layers of film that need to be laminated together. It uses mechanical positioning with adjustable positioning holes. It also features a servo pressurization mechanism for vacuum evacuation and pre-pressing. The equipment includes upper and lower heating plates to heat the film layers, allowing the PVB adhesive inside the film to reach its softening point. Temperature and pressure are applied uniformly across multiple film layers, ensuring the bonding of multiple green tapes together.

This equipment is suitable for the pressing of multi-layer ceramic capacitors and other thin films, enhancing the physical and electrical properties of the products.

1.Suitable for various component applications, including multilayer stacking.

2.Stacking is performed on a carrier plate with a CCD alignment platform, achieving an alignment accuracy error of up to 0.01 mm.

3.Offers a pressure range of 0-160 tons, with an error margin of 1 ton.

4.Accommodates a maximum sheet size of 450 mm x 450 mm.

6.Compact footprint. The base is equipped with heavy-duty swivel casters for flexible positioning.

7.AC servo hydraulic control ensures ultra-quiet operation, zero output when idle, providing stability and energy efficiency.

8.Touch Screen: 12-inch touch screen with user-friendly interface displaying and controlling heating, pressing, pressure holding, and manual operation.

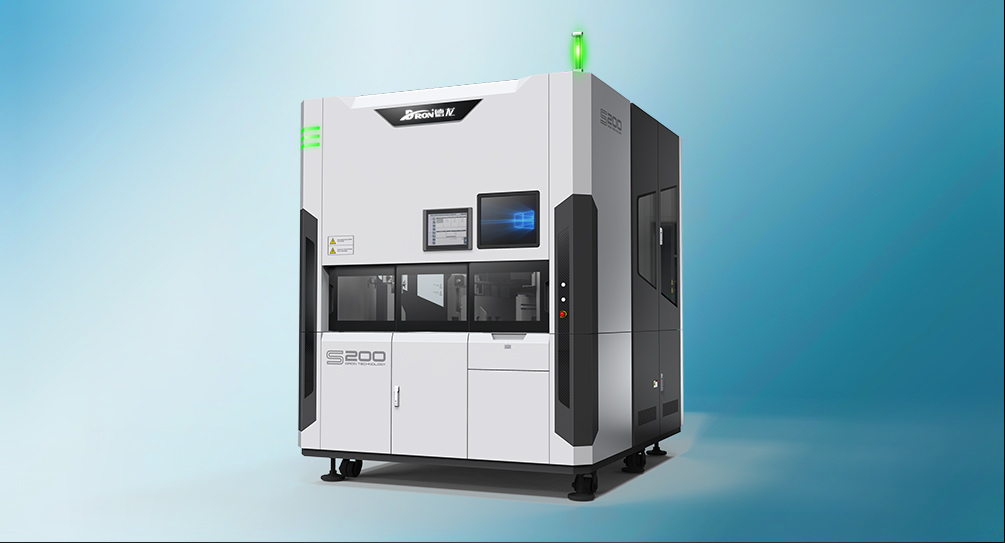

1.Capable of automatically separating PET film before stacking or after stacking.

2.Automatic vision alignment ensures high-precision stacking.

3.Features automated loading and unloading for high-efficiency production.

4.Achieves bubble-free stacking under high vacuum conditions.
